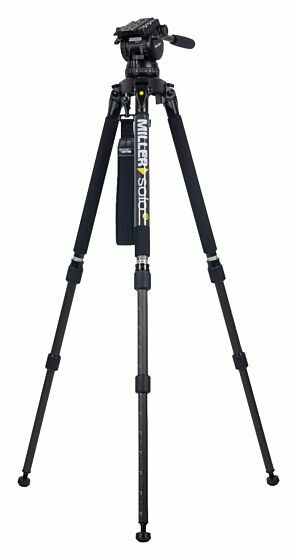

Miller 3786
CX14 (1097) Solo-Q 100 2-St Carbon Fibre Tripod (2515) Pan Handle (679) Strap (1520) Softcase (3502)
Miller 3786
CX14 (1097) Solo-Q 100 2-St Carbon Fibre Tripod (2515) Pan Handle (679) Strap (1520) Softcase (3502)
Cx14 Fluid Head:
The new CX14 designed for the creative professionals needing a stable, higher capacity solution, it is capable of balancing from a broadcast down to a DSLR camera, thanks to CB Plus technology and Miller's precision fluid drag system.
The CX14 employs CB PlusTM technology providing 16 positions of counterbalance, 5 selectable fluid drag positions + 0 settings of Miller's fluid pan and tilt drag with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.
Constructed of lightweight high-strength die-cast alloy and tough composite polymers and featuring precision ball bearings Miller have combined robust engineering with silk smooth pan and tilt camera movements. Built for extreme conditions the CX14 performs consistently over a wide range of temperatures and environments giving you confidence when out on a shoot.
CX14 meets the demands for reliability and;THE RIGHT FEEL" that are hallmarks of Miller, enabling you to tell your story.
Solo-Q 100 2 Stage Carbon Fibre:
The 2515 Solo-Q 100 2-Stage Rapid Lock CF tripod has changed how camera operator view telescopic tripods by achieving incredibly high torsional rigidity in the lightest 100mm Carbon fibre/magnesium design.
Solo-Q tripod series is developed for those that require the greatest degree of freedom without compromising the stability of the tripod, the Solo series is the most versatile, compact and easy to tripod in the Miller range.
In addition to the 2-stage telescoping design, Miller has eliminated the need for a spreader with an innovative leg angle control that incorporates a safety lock to ensure quick and easy setting of the tripod.
The Solo-Q 100 2-stage uses the most advanced carbon fibre tubing for the highest stiffness to weight ratios there is, high strength magnesium and die cast alloy components are incorporated to provide an ultra-light tripod.
All Solo-Q tripods feature the new and patented Q Lock which enables rapid deployment and stowage.
With an ultra-low minimum height of 242mm (9.5") to the heights of 1630mm (64.2") safely with no spreader and easy ball levelling you are guaranteed outstanding stable images from any angle across any terrain.
Pan Handle Fixed With Clamp:
Fixed length pan handle supplied with black handle carrier to suit Compass 12, 15, 20 and 23 Fluid Heads.
Solo Shoulder Strap Aircell:
The ergonomic, air-cell padded 1520 Solo Shoulder Strap can be fitted to all tripods and softcases in the Solo range. It is made from weatherproof cordura and nylon materials, with anti corrosive buckles and safety spring latches.
Arrowx Softcase 2 Stage:
To suit Sprinter II & Toggle 2 stage tripod systems
Included in box
- 1x CX14 Fluid Head
- 1x Solo-Q 100 2 Stage Carbon Fibre
- 1x Pan Handle Fixed With Clamp
- 1x Solo Shoulder Strap Aircell
- 1x Arrowx Softcase 2 Stage
Specifications
CX14 Fluid Head: | |
Payload Range | 0-14.0 kg (0-30.9 lbs) |
Weight | 2.5kg (5.5lbs) |
Counterbalance Positions | 16 selectable positions |
Pan Tilt Drag | 5 selectable fluid drag positions + 0 |
Pan Tilt Locks | Positive lock calliper brake system |
Tilt Range | +90° / -75° |
Pan Range | 360° |
Camera Platform | Quick release camera plate (Euro) |
Sliding Range | 60mm (2.4") |
Mounting Base | Ø100mm (3.9") ball levelling with 3 x M5 holes for flat base mounting |
Height Above Bowl | 150mm (6.0") |
Illuminated Controls | Bubble level, pan-tilt drag control |
Pan Handle | Fixed 390 mm (15.4”) |
Attachment | -40° to +65°C (-40° to +150°F) |
Solo-Q 100 2 Stage Carbon Fibre: | |
Maximum Payload Capacity | 30kg (66.0lbs) |
Weight | 2.5kg (5.5lbs) |
Height Range | 242-1630mm (9.5-64.2") |
Transport Length | 700mm (27.6") |
Mounting Base | Ø100mm (3.9") ball levelling |
Leg Extension | 2-stage telescopic |
Lock Type | Concentric Rapid Lock & Q-Lock |
Leg Material | Carbon fibre |
Pan Handle Fixed With Clamp: | |
Weight | 0.28kg (0.61lbs) |
Width | 390mm (15.4") |
Solo Shoulder Strap Aircell: | |
Weight | 0.2kg (0.4lbs) |
Width | 806mm (31.7") |
Arrowx Softcase 2 Stage: | |
Weight | 4.4kg (9.7lbs) |
Dimensions | 260 x 320 x 960mm (10.2 x 12.6 x 37.8”) |
