Miller 3005
Miller 3005
Miller 3005
AIR (1042) Solo-Q 75 2-St Carbon Fibre Tripod (2500) Pan Handle (682) Strap (1520) Softcase (3516)

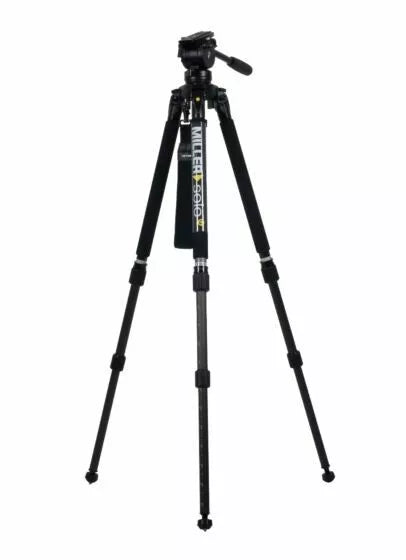

The 3005 Solo-Q 75 2-stage Carbon Fibre AIR system is light weight, quick to set up and delivers outstandingly smooth pans and tilts. For that fast action set-up the dual position counterbalance plus 60mm camera plate travel enables quick and easy balancing in both standard and heavier camera configurations. Whatever your application the AIR will always impress.
The Air fluid head is a professional, robust head used extensively by broadcasters such as the BBC, UK and ABC, Australia for news gathering. The Air head housing is made of durable alloy and comes with a three year full manufactures warranty. It is designed and constructed using the same techniques quality components and material as the more expensive professional heads in the Miller range. It is made to last and can be easily serviced.
The AIR fluid head is matched with the 2 stage Solo-Q carbon fibre tripod that results in a working height range of 379-1767mm (14.9-69.5"), rapid action twist locks on independent stages and the versatility to set up system across all terrains.
Included in box
- 1x 1042 AIR fluid head
- 1x 2500Solo-Q 75 2-stage tripod (carbon fibre)
- 1x 682 Pan handle - fixed with clamp
- 1x 1520 Solo-Q shoulder strap (Aircell)
- 1x 3516 Solo-Q 75 2 Stage tripod bag
Specifications
| Air Fluid Head (1042) | |
| Payload Range | 2.0-5.0kg (4.4-11.0lbs) |
| Weight | 1.4kg (3.0lbs) |
| Counterbalance Positions | 2 selectable positions |
| Pan Tilt Drag | Fixed |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | + 90°/ -75° |
| Pan Range | 360° |
| Camera Platform | Sliding camera plate |
| Sliding Range | 60mm (2.4") |
| Mounting Base | Ø75mm (2.9”) ball levelling |
| Height Above Bowl | 137mm (5.4") |
| Pan Handle | Fixed length 390mm (15.4") |
| Temperature Range | -40° to +65°C (-40° to +149°F) |
| Solo 75 2-Stage Carbon Fibre Tripod (2500) | |
| 2.0-5.0kg (5.5-11.0lbs ) | |
| Weight | 4.5kg (10.2lbs ) |
| Height Range | 379-1767mm (14.9-69.5") |
| Transport Length | 831mm (32.7") |
| Counterbalance Positions | 2 selectable positions |
| Pan Tilt Drag | Fixed |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | + 90°/ -75° |
| Pan Range | 360° |
| Camera Platform | Sliding camera plate |
| Sliding Range | 60mm (2.4") |
| Mounting Base | Ø75mm (2.9") ball levelling |
| Height Above Bowl | 137mm (5.4") |
| Illuminated Controls | Bubble level |
| Pan Handle | Fixed length 390mm (15.4") |
| Temperature Range | -40° to +65°C (-40° to +149°F) |
| Leg Extension | 2 Stage Telescopic |
| Lock Type | Concentric Rapid Lock & Q-Lock |
| Leg Material | Carbon fibre |
| Fixed Length Pan Handle (681) | |
| Weight | 0.26kg (0.57lbs) |
| Width | 390mm (15.4") |
| Solo-Q shoulder strap (Aircell 1520) | |
| Weight | 0.2kg (0.4lbs) |
| Width | 806mm (31.7") |
| Solo-Q 75 2 Stage tripod bag (3516) | |
| Weight | 0.5kg (1.1lbs) |
| Dimensions | 165 x 850mm (6.15 x 33.5”) |
