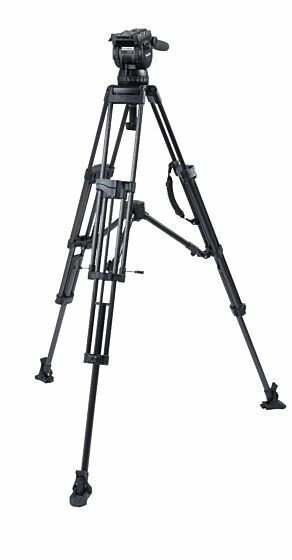

The 3783 CX14 Sprinter II 2-stage (carbon fibre) tripod system combines the 1576 Sprinter II tripod and CX14 fluid head for fast and easy set-ups. Designed for the creative professionals needing a stable, higher capacity solution, it is capable of balancing from a broadcast down to a DSLR camera, thanks to CB PlusTM technology and Miller's precision fluid drag system.
CX14 employs CB Plus™ technology providing 16 positions of counterbalance, 5+0 settings of Miller's fluid pan and tilt drag. Perfect for payloads to 0-14.0 kg (0-30.9 lbs) and with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.
Matched with the 2-stage Sprinter II (carbon fibre) tripod and mid-level spreader providing speed of set-up and incredible height range all in a light weight carbon fibre system.
Included in box
- 1x CX14 fluid head (1097)
- 1x Sprinter II 2-stage tripod (carbon fibre) (1576)
- 1x Mid-level spreader (993)
- 3x Rubber feet (475)
- 1x Pan handle - fixed with clamp (679)
- 1x Arrowx softcase 2-stage (3502)
Specifications
| Payload Range | 0-14.0 kg (0 - 30.9 lbs) |
| Weight | 7.2kg (15.9lbs) |
| Height Range | 603-1693mm (23.7-66.6") |
| Transport Length | 853mm (33.6") |
| Counterbalance Positions | 16 selectable positions (15+0) |
| Pan Tilt Drag | 5 selectable fluid drag positions + 0 |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | +90° / -75° |
| Pan Range | 360° |
| Camera Platform | Quick release, side load camera plate |
| Sliding Range | 60mm (2.4”) |
| Mounting Base | Ø100mm (3.9") ball levelling |
| Height Above Bowl | 150mm (6.0") |
| Illuminated Controls | Bubble level |
| Pan Handle | Fixed 390 mm (15.4”) |
| Temperature Range | -40° to +65°C (-40° to +150°F) |
| Leg Extension | 1-stage |
| Lock Type | HS dual action |
| Leg Material | Carbon fibre |
| Components | 1097 CX14 fluid head |
| 1576 Sprinter II 2-stage tripod (carbon fibre) | |
| 993 Mid-level spreader | |
| 475 Rubber feet (set of 3) | |
| 679 Pan handle - fixed with clamp | |
| 3502 Arrowx softcase 2-stage |
