Miller 3773
CX14 (1097) Sprinter II 1-St Alloy Tripod (1589G) Ground Spreader (470) Pan Handle (679) Softcase (3500)
Miller 3773
CX14 (1097) Sprinter II 1-St Alloy Tripod (1589G) Ground Spreader (470) Pan Handle (679) Softcase (3500)

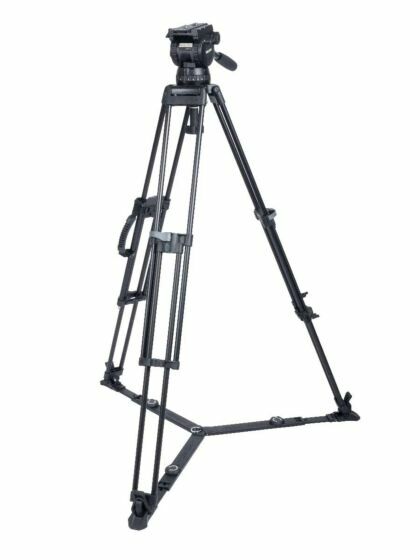

The 3773 CX14 Sprinter II 1-stage (alloy) tripod system with a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.
CX14 employs CB Plus™ technology providing 16 positions of counterbalance, 5+0 settings of Miller's fluid pan and tilt drag. Perfect for payloads to 0-14.0 kg (0 - 30.9 lbs) and with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.
Matched with the 1 stage Sprinter II (alloy) tripod and the stability of a ground spreader.
Included in box
- 1x CX14 fluid head (1097)
- 1x Sprinter II 1-stage tripod (alloy) (1589G)
- 1x Ground spreader (470)
- 1x Pan handle - fixed with clamp (679)
- 1x Arrow softcase 1-stage (3500)
Specifications
| Payload Range | 0-14.0 kg (0 - 30.9 lbs) |
| Weight | 6.9kg (15.2lbs) |
| Height Range | 823-1583mm (32.4-62.3”) |
| Transport Length | 853mm (33.6”) |
| Counterbalance Positions | 16 selectable positions (15+0) |
| Pan Tilt Drag | 5 selectable fluid drag positions + 0 |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | +90° / -75° |
| Pan Range | 360° |
| Camera Platform | Quick release, side load camera plate |
| Sliding Range | 60mm (2.4”) |
| Mounting Base | Ø100mm (3.9") ball levelling |
| Height Above Bowl | 150mm (6.0") |
| Illuminated Controls | Bubble level |
| Pan Handle | Fixed length 390mm (15.4") |
| Temperature Range | -40° to +65°C (-40° to +150°F) |
| Leg Extension | 2-stage |
| Lock Type | HS single action |
| Leg Material | Alloy |
| Components | 1097 CX14 fluid head |
| 1589G Sprinter II 1-stage tripod (alloy) | |
| 470 Ground spreader | |
| 679 Pan handle - fixed with clamp | |
| 3500 Arrow softcase 1-stage |
