Vendor Miller

Code 3092

Stock Contact us to check availability!

£4,558.00 4,558.00
Price inc. VAT: £5,469.60

Miller 3092

ArrowX 5 (1074) Sprinter II 1-St Alloy Tripod (1589G) Ground Spreader (470) Pan Handle (696) Softcase (3500)

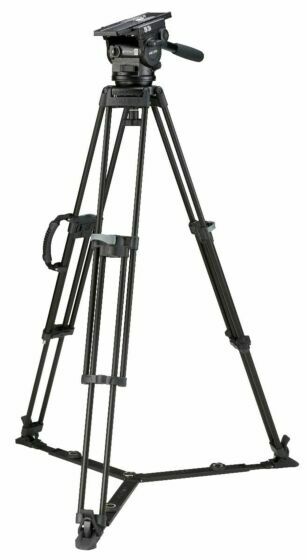

System ArrowX 5 Sprinter II 1-stage (alloy) combines ArrowX 5 fluid head with speedy and rugged Sprinter II alloy tripod to meet the demanding world of news gathering. From fast-action sports shooting to long, slow pans the ArrowX 5 system exceeds expectations of precision, quality and features for the ENG operators of payloads from 2-21kg 4.4-46.2lbs.

Fluid Head:
Following in the tradition and reputation of the world-renowned Arrow series, the all-new Arrowx 5 sets new dimensions in professional camera  support augmenting the power of expression of creative professionals. Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB PlusTM counterbalance system, Arrowx 5 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand from Miller’s 62 years of experience. 2-21kg (4.4-46.2lbs) payload range and 7 + 0 selectable pan-tilt fluid drag positions make Arrowx 5 ideal for ENG and EFP, enabling it to be used with a wide range of cameras, lenses and accessories and offering.

CB PlusTM is an innovative sequential counterbalance design, taking traditional counter balancing a step forward ahead of the rest, resulting in repeatable, accurate and rapid setup. CB PlusTM features eight larger counterbalance steps, allowing the user to get to their required counterbalance position quickly and efficiently. The CB Plus “one flick” switch conveniently located at the front of the head, adds a half step between each of the eight larger steps enabling counterbalance fine-tuning when required. The new Arrowx 5 comes with the reliability and “THE RIGHT FEEL” that are the hallmarks of every Miller product.

Sprinter II Single-Stage Alloy Tripod:
The new Sprinter II ENG tripod range features Miller Sprint-Locks, side-action leg locks. Miller's designers have updated the streamline design of the levers to bring you a more ergonomic feel to the lever-lock action. Single Stage Sprinters feature a singular Sprint-Lock side-action lever for single stage control.

Ground Spreader:
The Ground spreader attached directly to the spiked feet at the bottom of the Sprinter II tripods. Optimised for use on flat surfaces the telescoping spreader arms allow for rapid set-up and pull down by keeping the tripod legs at an equal or pre set distance.

Soft Case:
The Arrow Soft case for Single Stage tripods has padded carry straps for comfortable carrying with patented head-end cradle to protect the fluid head during transport. The Soft case is made from weatherproof Cordura with heavy duty zippers on bag and all pockets. Weighing only 3.5kg (7.7 lbs) and a transport length of 1080mm (42.5") this soft case is great protection for your tripod system.

Pan Handles:
Pan handle - telescopic with black handle carrier





Included in box

  • 1x ArrowX 5 Fluid Head
  • 1x Sprinter II Ground Spreader
  • 1x Arrow Soft Case
  • 1x Set of Pan Handles
  • 1x Sprinter II Single Stage Alloy Tripod



Specifications

ArrowX 5 Fluid Head:
Sliding Range 120mm (4.7”)
Payload Range 2-21kg (4.4-46.2lbs)
Weight 3.40 kg (7.5 lbs)
Mounting 100mm (3.9”) ball levelling
with 3 x M5 holes for flat base mounting
Pan Drag 7 selectable fluid drag positions + 0
Pan Range 360 °
Pan Lock Positive lock calliper brake system
Counter balance System 16 selectable positions
Temperature Range -40° to +65°C (-40° to +149°F)
Pan Handle Telescopic 390 to 590mm (15.4 to 23.2”)
Height Above Bowl 162 mm (6.4 in)
Illumination Bubble level, pan-tilt drag controls
Sprinter II Single-Stage Alloy Tripod:
Spreader Type Ground Spreader
Tripod Series Sprinter Tripod Series
Transport Length 840 mm (33.1 in)
Payload Capacity 45.00 kg (99.2 lbs)
Minimum Height 665 mm (26.2 in)
Maximum Height 1430 mm (56.3 in)
Material Aluminium
Lock Type Sprint-locks
Construction Single Stage
Bowl Diameter 100 mm (3.9 in)
Weight 3.20 kg (7.1 lbs)
Sprinter II Ground Spreader:
Attachment Stirrup
Extended Length 645 mm (25.4 in)
Folded Length 445 mm (17.5 in)
Spreader Type Ground Spreader
Weight 0.65 kg (1.4 lbs)
Arrow Soft case:
External Width 190 mm (7.5 in)
External Length 1080 mm (42.5 in)
External Height 220 mm (8.7 in)
Weight 3.50 kg (7.7 lbs)
Accessories Head Cradle Y
Accessories Carry Strap Y
Accessories Pockets Y
Pan handle:
Weight 0.38 kg (0.8 lbs)
Material Alloy/rubber
Length 390 mm (15.4 in)
Extended Length 590 mm (23.2 in)
