Sony ILCE6400MB.CEC
Sony ILCE6400MB.CEC

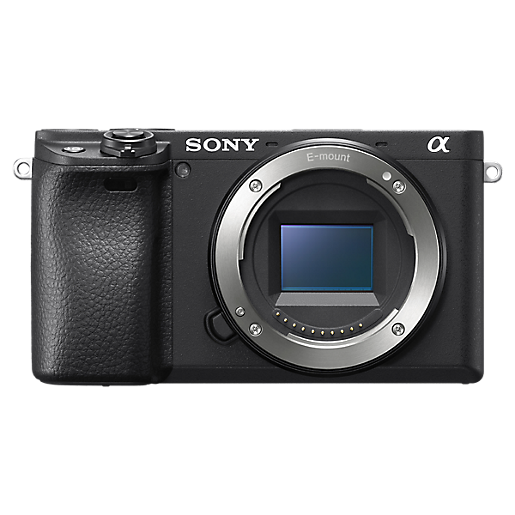

Alpha 6400 E-mount camera with APS-C Sensor
Features
a6400:
- World’s Fastest 0.02 seconds AF acquisition speed plus 425 phase-detection and contrast-detection AF points covering approximately 84% of image area
- Advanced Real-time Eye AF
- New Real-time Tracking for object tracking
- 24.2MP APS-C Exmor™ CMOS image sensor and latest-generation BIONZ X™ image processor
- 180-degree fully tiltable LCD touch screen for self-recording
- High-speed continuous shooting at up to 11 fps mechanical shutter / 8 fps silent shooting with continuous AF/AE tracking
- High-resolution 4K movie recording with full pixel readout and no pixel binning, plus advanced AF speed and stability
- Interval recording for time-lapse videos
18-135mm Zoom Lens:
- APS-C high magnification standard zoom lens
- Advanced optical design incorporating an aspherical element for high corner to corner resolution
- Advanced linear motor technology for fast, precise and quiet focus control
- Lightweight and compact design
- High zoom ratio
- High resolution from the centre to the edges
- Close-ups with background bokeh
- Bokeh is enhanced by circular aperture design
- Built in image stabilisation
- Sony E-Mount
Included in box
- 1x a6400 Body
- 1x SEL18135 18-135mm F3.5-5.6 Zoom Lens
- 1x AC Adaptor AC-UUE12
- 1x Accessory shoe cap
- 1x Lens Cap
- 1x Lens Hood
- 1x Lens Rear Cap
- 1x Eyepiece cup
- 1x Micro USB cable
- 1x Power cord
- 1x Rechargeable Battery NP-FW50
- 1x Shoulder strap
Specifications
| General: | |
| Camera type | Interchangeable-lens digital camera |
| Lens mount | Sony E-mount |
| Image sensor: | |
| Type | APS-C type (23.5 x 15.6mm) Exmor CMOS sensor |
| Number of pixels (effective) | Approx. 24.2 megapixels |
| Number of pixels (total) | Approx. 25.0 megapixels |
| Image sensor aspect ratio | 3:2 |
| Anti-dust system | Yes |
| Recording system (still images): | |
| Recording Format | JPEG (DCF Ver. 2.0, Exif Ver.2.31, MPF Baseline compliant), RAW (Sony ARW 2.3 format) |
| Image size (pixels) | 3:2 aspect ratio L: 6000 x 4000 (24M), M: 4240 x 2832 (12M), S: 3008 x 2000 (6.0M) |
| 16:9 aspect ratio L: 6000 x 3376 (20M), M: 4240 x 2400 (10M), S: 3008 x 1688 (5.1M) | |
| 1:1 aspect ratio L: 4000 x 4000 (16M), M: 2832 x 2832 (8.0M), S: 2000 x 2000 (4.0M) | |
| Sweep Panorama Wide: horizontal 12416 x 1856 (23M), vertical 5536 x 2160 (12M), Standard: horizontal 8192 x 1856 (15M), vertical 3872 x | |
| 2160 (8.4M) | |
| Image quality modes | RAW, RAW & JPEG (Extra fine, Fine, Standard), JPEG (Extra fine, Fine, Standard) |
| RAW output | 14 bit |
| Picture Effect | 13 types: Posterisation (Colour), Posterisation (B/W), Pop Colour, Retro Photo, Partial Colour (R/G/B/Y), High Contrast Monochrome, |
| Toy Camera (Normal/Cool/Warm/Green/Magenta), | |
| Soft High-key, Soft Focus (High/Mid/Low), HDR Painting (High/Mid/Low), Rich-tone | |
| Monochrome, Miniature (Auto/Top/Middle (H)/Bottom/Right/Middle (V)/Left), Watercolour, Illustration (High/Mid/ Low) | |
| Creative Style | Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn leaves, Black & White, Sepia, Style |
| Box (1-6), (Contrast (-3 to +3 steps), Saturation (-3 to +3 steps), Sharpness (-3 to +3 steps)) | |
| Dynamic range functions | Off, Dynamic Range Optimiser (Auto/Level (1-5)), Auto High Dynamic Range (Auto Exposure Difference, Exposure |
| Difference Level (1-6 EV, 1.0 EV step)) | |
| Colour space | sRGB standard (with sYCC gamut) and Adobe RGB standard compatible with TRILUMINOS Colour |
| Recording system (movies): | |
| Recording Format | XAVC S / AVCHD format Ver. 2.0 compliant |
| Video compression | XAVC S: MPEG-4 AVC/H.264 |
| AVCHD: MPEG-4 AVC/H.264 | |
| Audio recording format | XAVC S: LPCM 2ch |
| AVCHD: Dolby Digital (AC-3), 2ch, Dolby Digital Stereo Creator | |
| Image size (pixels) | NTSC XAVC S 4K: 3840 x 2160 (30p, 100M), 3840 x 2160 |
| (24p, 100M), 3840 x 2160 (30p, 60M), 3840 x 2160 (24p, 60M) | |
| XAVC S HD: 1920 x 1080 (120p, 100M), 1920 x 1080 (120p, 60M), 1920 x 1080 (60p, 50M), 1920 x 1080 (30p, 50M), 1920 x 1080 (24p, 50M), | |
| 1920 x 1080 (60p, 25M), 1920 x 1080(30p, 16M) | |
| AVCHD: 1920 x 1080 (60p/28Mbps/PS, 60i/24Mbps/FX, 60i/17Mbps/FH, 24p/24Mbps/FX, 24p/17Mbps/FH) | |
| PAL XAVC S 4K: 3840 x 2160 (25p, 100M), 3840 x 2160 (25p, 60M) | |
| XAVC S HD: 1920 x 1080 (100p, 100M), 1920 x 1080 (100p, 60M), 1920 x 1080 (50p, 50M), 1920 x 1080 (25p, 50M), 1920 x 1080 (50p, 25M), | |
| 1920 x 1080 (25p, 16M) | |
| AVCHD:1920 x 1080 (50i, 24M, FX), 1920 x 1080 (50i, 17M, FH) | |
| Slow & Quick motion (S&Q) Record Setting | NTSC mode: 1920x1080 (60p, 30p, 24p) |
| PAL mode: 1920x1080 (50p, 25p) | |
| Slow & Quick motion (S&Q) Frame Rate | NTSC mode: 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps |
| PAL mode: 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps | |
| Picture Profile | Yes (Off / PP1-PP10) Parameters: Black level, Gamma (Movie, Still, Cine1-4, ITU709, ITU709 [800%], S-Log2, S-Log3, HLG, HLG1- |
| 3), Black Gamma, Knee, Colour Mode, Saturation, Colour | |
| Phase, Colour Depth, Detail, Copy, Reset | |
| Movie functions | Audio Level Display, Audio Rec Level, PAL/NTSC Selector, Proxy Recording (1280 x 720 (Approx. 9Mbps)), TC/UB (TC Preset/UB |
| Preset/TC Format/TC Run/TC Make/UB Time Rec), | |
| Auto Slow Shutter, REC Control, Clean HDMI Info. (ON/OFF selectable), Gamma Disp. Assist | |
| Colour space | xvYCC standard (x.v.Colour when connected via HDMI cable) compatible with TRILUMINOS Colour |
| Clean HDMI output | 3840 x 2160 (30p), 3840 x 2160 (25p), 3840 x 2160 |
| (24p), 1920 x 1080 (60p), 1920 x 1080 (60i), 1920 x 1080 (50p), 1920 x 1080 (50i), 1920 x 1080 (24p), YCbCr 4:2:2 8bit / RGB 8bit | |
| Media: | |
| Media | Memory Stick PRO Duo, Memory Stick PRO-HG Duo, Memory Stick Micro (M2), SD memory card, SDHC memory card (UHS-I compliant), |
| SDXC memory card (UHS-I compliant), microSD memory card, microSDHC memory card, microSDXC memory card | |
| Slot | Multi slot for Memory Stick Duo/ SD memory card |
| Noise reduction: | |
| Noise reduction | Long exposure NR: On/Off, available at shutter speeds longer than 1 sec., High ISO NR: Normal/Low/Off |
| Multi Frame NR | Auto/ ISO 100 to 102400 |
| White balance: | |
| Modes | Auto / Daylight / Shade / Cloudy / Incandescent / Fluorescent (Warm White / Cool White / Day White / Daylight) / Flash /Underwater/ |
| Colour Temperature (2500 to 9900K) & colour filter (G7 to M7 (57-step), A7 to B7 (29-step)) / Custom | |
| AWB micro adjustment | G7 to M7 (57-step), A7 to B7 (29-step) |
| Priority Set in AWB | Yes |
| Shutter AWB lock | Yes (Shut. Halfway Down/ Cont. Shooting/ Off) |
| Bracketing | 3 frames, H/L selectable |
| Focus system: | |
| Type | Fast Hybrid AF (phase-detection AF/contrast-detection AF)*1 |
| Focus point | 425 points (phase-detection AF) / 425 points (contrast-detection AF) |
| Sensitivity range | EV-2 to EV20 (ISO 100 equivalent with F2.0 lens attached) |
| AF modes | Automatic AF (AF-A), Single-shot AF (AF-S), Continuous AF (AF-C), Direct Manual Focus (DMF), Manual Focus |
| Focus area | Wide (425 points (phase-detection AF), 425 points (contrast-detection AF)) / Zone / Center / Flexible Spot (S/M/L) /Expanded Flexible |
| Spot/ Tracking (Wide / Zone / Center / Flexible Spot (S/M/L)/Expanded Flexible Spot) | |
| Focus type with LA-EA3 (sold separately) | Phase-detection/contrast-detection selectable |
| Other features | Eye-start AF (only with LA-EA2 or LA-EA4 attached (sold separately)), Object Tracking, Eye AF (Right/Left Eye Select), AF micro |
| adjustment with LA-EA2 or LA-EA4 (sold separately), Predictive control, Focus lock, Swt.V/H AF Area, AF Area Regist., Circ. of Focus Point | |
| Exposure control: | |
| Metering type | 1200-zone evaluative metering |
| Metering sensor | Exmor CMOS sensor |
| Metering sensitivity | EV-2 to EV20 (at ISO 100 equivalent with F2.0 lens attached) |
| Metering modes | Multi-segment, Center-weighted, Spot (Standard/Large), Entire Screen Avg., Highlight |
| Exposure modes | AUTO (iAuto/Superior Auto), Programmed AE (P), Aperture priority (A), Shutter-speed priority (S), Manual (M), Movie |
| (Programmed AE (P) / Aperture priority (A) / Shutter-speed priority (S) / Manual (M)), Slow & Quick Motion (Programmed AE (P) / Aperture | |
| priority (A) / Shutter-speed priority (S) / Manual (M)), Sweep Panorama, Scene Selection | |
| Scene Selection | Portrait, Sports Action, Macro, Landscape, Sunset, Night Scene, Hand-held Twilight, Night Portrait, Anti Motion Blur |
| Exposure compensation | +/-5.0 EV (in 1/3 EV or 1/2 EV steps) |
| AE bracketing | Bracket: Single/Bracket: Cont., 3/5/9 frames selectable. With 3 or 5 frames, in 1/3, 1/2, 2/3, 1.0, 2.0 or 3.0 EV increments, with 9 |
| frames, in 1/3, 1/2, 2/3 or 1.0 EV increments. | |
| AE lock | Available with AE lock button. Locked when shutter button is pressed halfway. |
| ISO sensitivity (Recommended Exposure Index) | Still images: ISO 100-32000 (ISO numbers up to ISO 102400 can be set as expanded ISO |
| range.), AUTO (ISO 100-6400, selectable lower limit and upper limit), Movies: ISO 100-32000 equivalent, AUTO (ISO 100-6400, selectable lower | |
| limit and upper limit) | |
| Viewfinder: | |
| Type | XGA OLED, 1.0cm (0.39 type) electronic viewfinder (colour) |
| Total number of dots | 2,359,296 dots |
| Brightness control | Auto/Manual (5 steps between -2 and +2) |
| Colour temperature control | Manual (5 steps) |
| Field coverage | 100% |
| Magnification | Approx. 1.07x (35mm camera equivalent: Approx. 0.70x) with 50mm lens at infinity, -1m-1 |
| Diopter adjustment | -4.0 to +3.0m-1 |
| Eye point | Approx. 23mm from the eyepiece lens, 21.4mm from the eyepiece frame at -1m-1(CIPA standard) |
| Display | Graphic Display, Display All Info., No Disp. Info., Digital Level Gauge, Histogram |
| Real-time image-adjustment display | On/Off |
| Finder Frame Rate selection | NTSC mode: STD 60fps / HI 120fps, PAL mode: STD 50fps / HI 100fps |
| LCD Screen: | |
| Type | 7.5cm (3.0-type) wide type TFT |
| Total number of dots | 921,600 dots |
| Touch Panel | Yes |
| Touch Focus | Yes (Touch Panel/ Touch Pad) |
| Brightness control | Manual (5 steps between -2 and +2), Sunny Weather mode |
| Adjustable angle | Up by approx. 180 degrees, Down by approx. 74 degrees |
| Display | Graphic Display, Display All Info, No Disp. Info, Digital Level Gauge, Histogram, For viewfinder, Monitor Off |
| Real-time image-adjustment display | On/Off |
| Focus magnifier | 5.9x, 11.7x |
| Zebra | Yes (selectable level + range or lower limit as custom setting) |
| Peaking MF | Yes (Level setting: High/Mid/Low/Off, Colour: White/Red/Yellow/Blue) |
| Other features: | |
| Interval Recording | Yes ( 1-60 sec. interval, 1-9999 shots, AE tracking) |
| Face detection | Face Priority in AF (On/Off), Face Priority in Multi Metering (On/Off), Registered face priority (On/Off) , Face registration (Max. |
| number of detectable faces: 8) | |
| Auto Object Framing | Yes |
| Clear Image Zoom | Still images: Approx. 2x, Movies: Approx. 1.5x (4K), Approx. 2x (HD) |
| Digital zoom | Smart zoom (still images): M: Approx. 1.4x, S: Approx. 2.0x |
| Digital zoom (still images) L: Approx. 4x, M: Approx. 5.7x, S: Approx. 8x | |
| Digital zoom (movies):Approx. 4x | |
| Lens compensation | Peripheral Shading, Chromatic Aberration, Distortion |
| Others | Smile Shutter: Smile shutter (selectable from 3 steps), Touch Shutter, Touch Focus: Yes (Touch Focus/Touch Pad/Touch Tracking), ISO |
| AUTO Min. SS, Bright Monitoring, Copyright Info, Set File Name, Help guide, Area Setting, Shop Front Mode, Zoom Ring Rotate, Still images | |
| Shutter: | |
| Type | Electronically controlled, vertical-traverse, focal-plane type |
| Shutter Speed | Still images: 1/4000 to 30 sec., Bulb |
| Movies: 1/4000 to 1/4 (1/3-step) | |
| NTSC: Up to 1/60 in AUTO mode (up to 1/30 in Auto Slow Shutter mode) | |
| PAL: Up to 1/50 in AUTO mode (up to 1/25 in Auto Slow Shutter mode) | |
| Flash sync. speed | 1/160 sec. |
| Electronic front curtain shutter | Yes, On/Off |
| Silent Shooting | Yes, On/Off |
| Flash Control: | |
| Control | Built-in flash |
| Guide No. | 6 (in meters at ISO 100) |
| Flash coverage | 16mm (focal-length printed on the lens body) |
| Control | Pre-flash TTL |
| Flash compensation | +/-3.0 EV (switchable between 1/3 and 1/2 EV steps) |
| Flash bracketing | 3/5/9 frames selectable. With 3 or 5 frames, in 1/3, 1/2, 2/3, 1.0, 2.0, 3.0 EV increments, with 9 frames, in 1/3, 1/2, 2/3, 1.0 |
| EV increments. | |
| Flash modes | Flash off, Autoflash, Fill-flash, Slow Sync., Rear Sync., Red-eye reduction (On/Off selectable), Wireless control, Hi-speed sync |
| Recycling time | Approx. 4 sec. |
| External flash | Sony System Flash compatible with Multi Interface Shoe. Attach the shoe adaptor for flash compatible with Auto-lock Accessory |
| Shoe. | |
| FE level lock | Yes |
| Wireless control | Yes (Light signal: Available with Fill-flash, Slow Sync., Hi-speed sync. /Radio signal: Available with Fill-flash, Rear Sync., Slow |
| Sync., Hi-speed sync.) | |
| Drive: | |
| Drive modes | Single Shooting, Continuous shooting (Hi+/Hi/Mid/Lo selectable), Self-timer, Self-timer (Cont.), Bracket: Single, Bracket: Cont., |
| White Balance bracket, DRO bracket | |
| Self-timer | 10 sec. delay/5 sec. delay/2 sec. delay/Continuous self-timer (3 frames after 10 sec. delay/5 frames after 10 sec. delay/3 frames after |
| 5 sec. delay/5 frames after 5 sec. delay/3 frames | |
| after 2 sec. delay/5 frames after 2 sec. delay)/Bracketing self-timer (Off/2 sec. delay/5 sec. delay/10 sec. delay) | |
| Speed (approx., max.) | Continuous shooting: Hi+: 11 fps, Hi: 8 fps, Mid: 6 fps, Lo: 3 fps |
| No. of recordable frames (approx.) | JPEG Extra fine L: 99 frames, JPEG Fine L: 115 frames, JPEG Standard L: 116 frames, RAW: 46 frames, RAW & |
| JPG: 44 frames | |
| Playback: | |
| Modes | Single (with or without shooting information Y RGB histogram & highlight/shadow warning), 12/30-frame index view, Enlarged display |
| mode (L: 16.7x, M: 11.8x, S: 8.3x, Panorama (Standard): 19.2x, Panorama (Wide): 29.1x), Auto Review (10/5/2 sec.,Off), Image orientation | |
| (Auto/ Manual/Off selectable), Slideshow, Panorama scrolling, Folder selection (Date/ Still/ AVCHD/ | |
| XAVC S HD/XAVC S 4K), Forward/Rewind (movie), Delete, Protect, Rating, Disp Cont Shoot Grp | |
| Interface: | |
| PC interface | Mass-storage, MTP, PC remote |
| Multi / Micro USB Terminal | Yes |
| Wireless LAN (built-in) | Wi-Fi Compatible, IEEE802.11b/g/n (2.4GHz band), Playback of still images and movies on smartphones, PCs and TVs |
| NFC | Yes (NFC Forum Type 3 Tag compatible, One-touch remote, One-touch sharing) |
| Bluetooth | Yes (Bluetooth Standard Ver. 4.1 (2.4GHz band)) |
| HD Output | HDMI micro connector (Type-D), BRAVIA Sync (link menu), PhotoTV HD, 4K movie output, |
| 4K still image playback | |
| Multi Interface Shoe | Yes |
| Others | Microphone terminal (3.5mm Stereo minijack) |
| Audio: | |
| Microphone | Built-in stereo microphone or XLR-K2M / XLR-K1M / ECM-XYST1M (sold separately) |
| Speaker | Built-in, monaural |
| Print: | |
| Compatible standards | Exif Print, Print Image Matching III, DPOF setting |
| Custom function: | |
| Type | Custom key settings, Programmable Setting (Body 3 sets /memory card 4 sets), My Menu, My Dial, Reg Cust Shoot Set |
| Power: | |
| Battery | Rechargeable battery pack NP-FW50 |
| Still images | Approx. 360 shots (Viewfinder) / Approx. 410 shots (LCD monitor) (CIPA standard) |
| Movies | Approx. 70 min (Viewfinder) / Approx. 75 min (LCD monitor) (CIPA standard) |
| Approx. 125 min (Viewfinder) / Approx. 125 min (LCD monitor) (CIPA standard) | |
| External power | AC Adaptor AC-PW20 (sold separately) |
| Weight:With battery and Memory Stick PRO Duo | Approx. 403g (approx. 14.3 oz. ) |
| Body only Approx. 359g (approx. 12.7 oz.) | |
| Dimensions (excluding protrusions) | Approx. 120.0mm x 66.9mm x 59.7mm, |
| Approx. 120.0mm x 66.9mm x 49.9mm (from grip to monitor)/Approx. 4 3/4 x 2 3/4 x 2 3/8 inches, Approx. 4 3/4 x 2 3/4 x 2 inches (from grip | |
| to monitor) | |
| Operating temperature | Range 32°-104°F / 0-40°C |
| 18-135mm Zoom Lens: | |
| Mount | Sony E-mount |
| Format | APS-C |
| Focal-Length | 18-135mm |
| 35mm Equivalent Focal-Length (APS-C) | 27-202.5mm |
| Angle of View (APS-C) | 79°-12° |
| Maximum Aperture | f3.5-5.6 |
| Minimum Aperture | f22-36 |
| Aperture Blades | 7 |
| Circular Aperture | Yes |
| Minimum Focus Distance | 0.45m (1.48ft) |
| Maximum Magnification Ratio (X) | 0.29x |
| Filter Diameter | 55mm |
| Image Stabilisation (STEADYSHOT) | Optical SteadyShot |
| Zoom System | Manual |
| Hood Shape | Petal Shape Bayonet Type |
| Dimensions (W x H x D) | 6.7 x 8.8cm (2.6-3.4in) |
| Weight | 0.325kg (0.71lb) |
