Miller 3769
Miller 3769

Vendor Miller

Code 3769

Stock Contact us to check availability!

£2,766.00 2,766.00
Price inc. VAT: £3,319.20

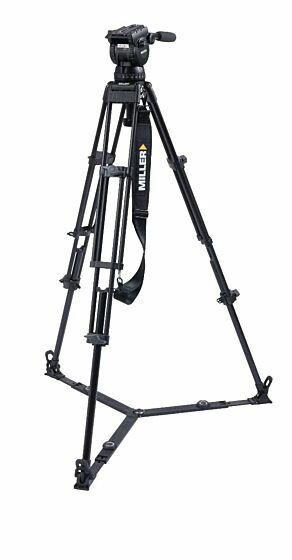

Miller 3769



CX14 (1097) Toggle 2-St Alloy Tripod (402G) Ground Spreader (411) Pan Handle (679) Strap (1520) Softcase (3514)



The 3769 CX14 Toggle 2-stage (alloy) tripod system combines with CX14 fluid head and cost-effective yet speedy, lightweight 100mm 402G Toggle tripod with ground spreader.

CX14 employs CB Plus™ technology providing 16 positions of counterbalance, 5+0 settings of Miller's fluid pan and tilt drag. Perfect for payloads to 0-14.0 kg (0 - 30.9 lbs) and with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.

Matched with the 2-stage Toggle (alloy) tripod and on-ground spreader to yield a large height range 553-1723mm (22-68"), offering positive leg toggle locks and the versatility of using the system across all terrains.





Included in box

  • 1x  CX14 Fluid Head  (1097)
  • 1x  Toggle 2-Stage Tripod  (402G)
  • 1x  On Ground Spreader  (411)
  • 1x  Pan Handle - fixed with clamp  (679)
  • 1x  Shoulder Strap (padded)  (554)
  • 1x  Softcase 2-Stage  (3514)



Specifications

Payload Range 0-14.0 kg (0 - 30.9 lbs)
Weight 6.9kg (15.2lbs)
Height Range 553-1723mm (22-68")
Transport Length 843mm (33.2")
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 5 selectable fluid drag positions + 0
Pan Tilt Locks Positive lock calliper brake system
Tilt Range +90° / -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4”)
Mounting Base Ø100mm (3.9") ball levelling
Height Above Bowl 150mm (6.0")
Illuminated Controls Bubble level
Pan Handle Fixed 390 mm (15.4”)
Temperature Range -40° to +65°C (-40° to +150°F)
Leg Extension 2-stage
Lock Type Toggle
Leg Material Alloy
Components 1097 CX14 fluid head
402G Toggle 2-stage tripod (alloy)
411 On ground spreader
679 Pan handle - fixed with clamp
554 Shoulder strap (padded)
3514 Softcase 2-stage
