Miller 3756
CX10 (1096) Toggle 2-St Alloy Tripod (402) AG Spreader (508) Pan Handle (679) Strap (1520) Feet (550) Softcase (3514)
Miller 3756
CX10 (1096) Toggle 2-St Alloy Tripod (402) AG Spreader (508) Pan Handle (679) Strap (1520) Feet (550) Softcase (3514)

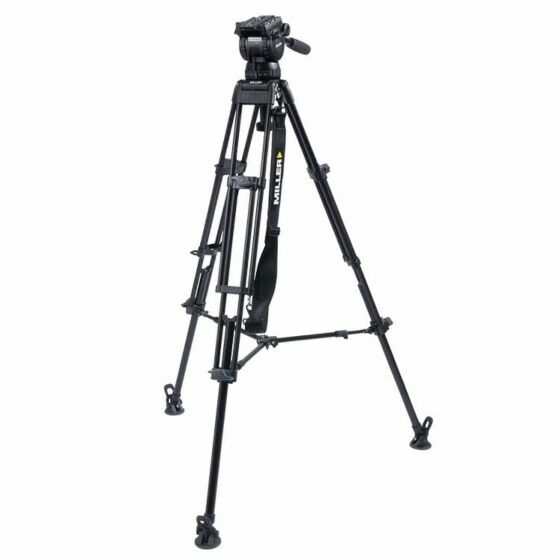

The 3756 Compassx 10 (CX10) Toggle 2-stage (alloy) tripod system with a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.
Whether the job requires a mirrorless camera, DSLR, cine-rig or a broadcast camera, the CX10 is capable of balancing from 0kg to 12kg. It features advanced precision fluid drag, fast set-up and professional performance with the flexibility and rigidness of the 402 alloy Toggle tripod.
CX10 employs CB PlusTM technology providing 16 positions of counterbalance and 5+0 levels of pan and tilt settings of Miller’s fluid drag with 60mm of camera plate travel, enabling you to easily select the perfect settings to match your configuration for ultimate camera control.
The CX10 is matched with the 2-stage Toggle (alloy) tripod and above-ground spreader to provide a large height range 543-1713mm (21.4-67.4"), positive leg toggle locks and the versatility of using the system across all terrains.
Included in box
- 1x CX10 fluid head
- 1x Toggle 2-stage tripod (alloy)
- 1x Above ground spreader
- 1x Pan handle - fixed with clamp
- 1x Shoulder strap (padded)
- 1x Rubber feet (set of 3)
- 1x Softcase 2-stage
Specification
Payload Range | 0-12.0kg (0-26.4lbs) |
Weight | 6.9kg (15.2lbs) |
Height Range | 543-1713mm (21.4-67.4”) |
Transport Length | 843mm (33.2”) |
Counterbalance Positions | 16 selectable positions (15+0) |
Pan Tilt Drag | 5 Selectable fluid drag positions + 0 |
Pan Tilt Locks | Positive lock calliper brake system |
Tilt Range | + 90°/ -75° |
Pan Range | 360° |
Camera Platform | Quick release, side load camera plate |
Sliding Range | 60mm (2.4") |
Mounting Base | Ø100mm (3.9") ball levelling |
Height Above Bowl | 150mm (6.0") |
Illuminated Controls | Bubble level |
Pan Handle | Fixed length 390mm (15.4") |
Temperature Range | -40° to +65°C (-40° to +149°F) |
Leg Extension | 1-stage |
Lock Type | Toggle |
Leg Material | Alloy |
