Miller 3751
CX10 (1096) Sprinter II 1-St Alloy Tripod (1589G) Ground Spreader (470) Pan Handle (679) Softcase (3500)
Miller 3751
CX10 (1096) Sprinter II 1-St Alloy Tripod (1589G) Ground Spreader (470) Pan Handle (679) Softcase (3500)

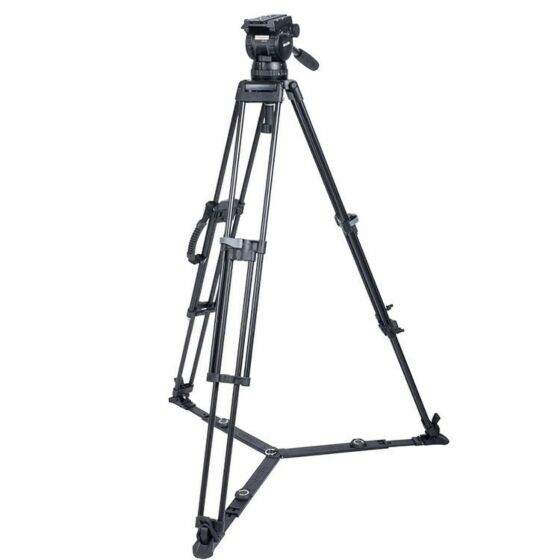

The 3752 CX10 Sprinter II 1-stage (alloy) tripod system with a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.
CX10 employs CB Plus technology providing 16 positions of counterbalance and 5+0 levels of pan and tilt settings of Miller's fluid drag with 60mm of camera plate travel, enabling you to easily select the perfect settings to match your configuration for ultimate camera control.
The CX10 is matched with the 1 stage Sprinter II (alloy) tripod and the stability of a ground spreader.
Included in box
- 1x 1096 CX10 fluid head
- 1x 1589G Sprinter II 1-stage tripod (alloy)
- 1x 470 Ground spreader
- 1x 679 Pan handle - fixed with clamp
- 1x 3500 Arrow softcase 1-stage
Specifications
| Payload Range | 0-12kg (0-26.4lbs) |
| Weight | 7.8kg (17.2lbs) |
| Height Range | 823-1583mm (32.4-62.3”) |
| Transport Length | 993mm (39.1”) |
| Counterbalance Positions | 16 selectable positions (15+0) |
| Pan Tilt Drag | 5 Selectable fluid drag positions + 0 |
| Pan Tilt Locks | Positive lock caliper brake system |
| Tilt Range | + 90°/ -75° |
| Pan Range | 360° |
| Camera Platform | Quick release, side load camera plate |
| Sliding Range | 60mm (2.4") |
| Mounting Base | Ø100mm (3.9") ball levelling |
| Height Above Bowl | 150mm (6.0") |
| Illuminated Controls | Bubble level |
| Pan Handle | Fixed length 390mm (15.4") |
| Temperature Range | -40° to +65°C (-40° to +149°F) |
| Leg Extension | 1-stage |
| Lock Type | HS single action |
| Leg Material | Alloy |
