Miller 3749
Miller 3749

Vendor Miller

Code 3749

Stock Contact us to check availability!

£2,892.00 2,892.00
Price inc. VAT: £3,470.40

Miller 3749



CX10 (1096) Sprinter II 2-St Alloy Tripod (1580G) Ground Spreader (470) Pan Handle (679) Softcase (3502)

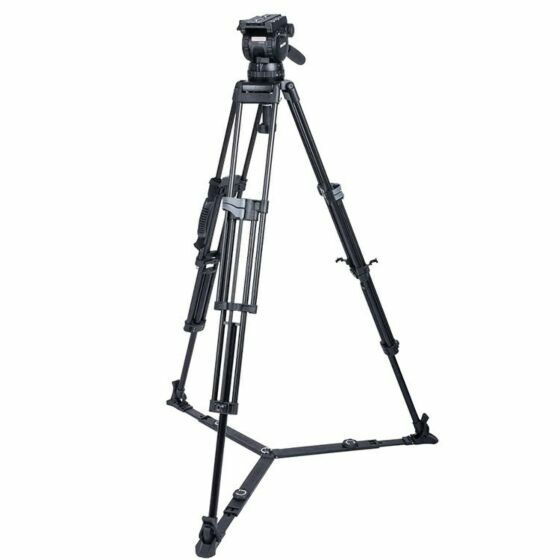

The 3749 CX10 Sprinter II 2 Stage (alloy) tripod system with a robust 100mm ball levelling fluid head designed for users needing the stability that comes with 100mm tripods, cost effectively.

CX10 employs CB Plus technology providing 16 positions of counterbalance and 5+0 levels of pan and tilt settings of Miller's fluid drag with 60mm of camera plate travel, enabling you to easily select the perfect settings to match your configuration for ultimate camera control.

The CX10 is matched with the 2 stage Sprinter II (alloy) tripod and the stability of a ground spreader.





Included in box

  • 1x 1096 CX10 fluid head
  • 1x 1580G Sprinter II 2-stage tripod (alloy)
  • 1x 470 Ground spreader
  • 1x 679 Pan handle - fixed with clamp
  • 1x 3502 Arrow softcase 2-stage



Specifications

Payload Range 0-12kg (0-26.4lbs)
Weight 7.5kg (16.5lbs)
Height Range 603-1693mm (23.7-66.6”)
Transport Length 853mm (33.6”)
Counterbalance Positions 16 selectable positions (15+0)
Pan Tilt Drag 5 Selectable fluid drag positions + 0
Pan Tilt Locks Positive lock caliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Quick release, side load camera plate
Sliding Range 60mm (2.4")
Mounting Base Ø100mm (3.9") ball levelling
Height Above Bowl 150mm (6.0")
Illuminated Controls Bubble level
Pan Handle Fixed length 390mm (15.4")
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2-stage
Lock Type HS dual action
Leg Material Alloy
