Miller 3747
CX8 (1093) 75 Sprinter II 2-St Carbon Fibre Tripod (1620) Mid-Level Spreader (593) Pan Handle (679) Feet (475) Softcase (3502)
Miller 3747
CX8 (1093) 75 Sprinter II 2-St Carbon Fibre Tripod (1620) Mid-Level Spreader (593) Pan Handle (679) Feet (475) Softcase (3502)

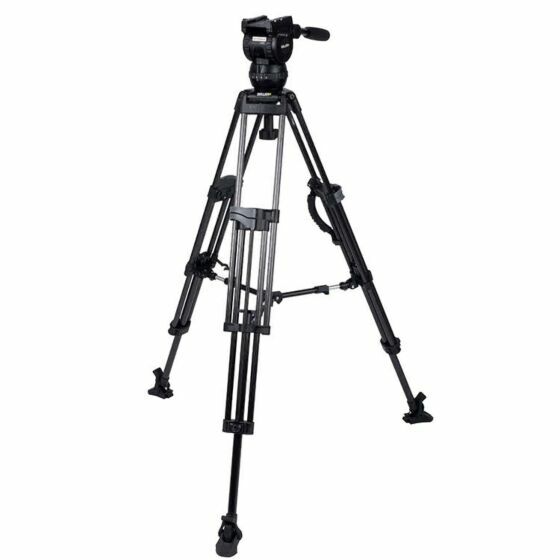

The 3747 CX8 75 Sprinter II 2 Stage (carbon fibre) system combines the 1620 75 Sprinter II tripod and CX8 fluid head for fast and easy set-ups. Designed for the creative professionals needing a stable, higher capacity solution, it is capable of balancing from a broadcast down to a DSLR camera, thanks to CB Plus technology and Millers precision fluid drag system.
The CX8 employs CB Plus technology providing 16 positions of counterbalance, 5+0 settings of Miller's fluid pan and tilt drag with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.
The CX8 is matched with the 2-stage 75 Sprinter II (carbon fibre) tripod and mid-level spreader providing speed of set-up and incredible height range all in a light weight carbon fibre system.
Included in box
- 1x 75 Sprinter II 2-Stage Tripod – Carbon Fibre (1620)
- 1x CX8 Fluid Head (1093)
- 1x Basic Mid-Level Spreader (593)
- 3x Rubber Feet (475)
- 1x Pan handle – fixed with clamp (679)
- 1x Arrowx Softcase (3502)
Specifications
Payload Range | 0-12kg (0-26.4lbs) |
Weight | 6.7kg (14.8lbs) |
Height Range | 767-1697mm (30.2-66.8") |
Transport Length | 867mm (34.1”) |
Counterbalance Positions | 16 selectable positions (15+0) |
Pan Tilt Drag | 5 selectable fluid drag positions + 0 |
Pan Tilt Locks | Positive lock caliper brake system |
Tilt Range | +90° / -75° |
Pan Range | 360° |
Camera Platform | Quick release, side load camera plate |
Sliding Range | 60mm (2.4") |
Mounting Base | Ø75mm (2.9") ball levelling |
Height Above Bowl | 167mm (6.6") |
Illuminated Controls | Bubble level |
Pan Handle | Fixed length 390mm (15.4") |
Temperature Range | -40° to +65°C (-40° to +150°F) |
Leg Extension | 2-stage |
Lock Type | HS dual action |
Leg Material | Carbon fibre |
