Miller 3746
CX8 (1093) Solo-Q 75 3-St Carbon Fibre Tripod (2505) Pan Handle (679) Strap (1520) Softcase (3514)
Specifications
Miller 3746
CX8 (1093) Solo-Q 75 3-St Carbon Fibre Tripod (2505) Pan Handle (679) Strap (1520) Softcase (3514)

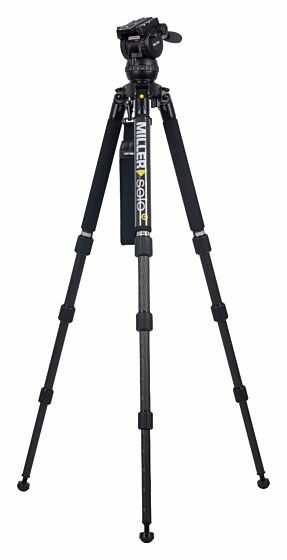

The 3746 Compassx 8 (CX8) Solo 75 3-stage (carbon fibre) tripod system consists of the CX8 fluid head. and the ultra-light, rigid Solo 75 3-stage Carbon Fibre Tripod. An ideal tripod system for cinematic and documentary, where the payload and centre of gravity changes frequently due to lens or accessories swapping.
CX8 is the premium head in the 75mm ball levelling
The 3746 CX8 Solo 75 3-stage (carbon fibre) tripod system consists of the CX8 fluid head. and the ultra-light, rigid Solo 75 3-stage Carbon Fibre Tripod. An ideal tripod system for cinematic and documentary, where the payload and centre of gravity changes frequently due to lens or accessories swapping.
CX8 is the premium head in the 75mm ball levelling CompassX series. Designed for camera rigs from 0kg to 12kg, with CB plus 16 balance positions and 5 levels of fluid drag, it sets the standard in professional compact camera supports.
The CX8 is matched with the 3 stage Solo (carbon fibre) tripod that results in a range topping height range of 400-2050mm (15.7-80.7"), rapid action twist locks on independent stages and the versatility to set up system across all terrains.
Included in box
- 1x CX10 fluid head
- 1x Solo 75 3-stage tripod (carbon fibre)
- 1x Pan handle - fixed with clamp
- 1x Solo shoulder strap (Aircell)
- 1x Softcase 2-stage
Specifications
Payload Range | 0-12.0kg (0-26.4lbs) |
Weight | 5.9kg (13.0lbs) |
Height Range | 400-2050mm (15.7-80.7") |
Transport Length | 828mm (32.6") |
Counterbalance Positions | 16 selectable positions (15+0) |
Pan Tilt Drag | 5 selectable fluid drag positions + 0 |
Pan Tilt Locks | Positive lock calliper brake system |
Tilt Range | + 90°/ -75° |
Pan Range | 360° |
Camera Platform | Quick release, side load camera plate |
Sliding Range | 60mm (2.4") |
Mounting Base | 75mm (2.9") ball levelling |
Height Above Bowl | 167mm (6.6") |
Illuminated Controls | Bubble level |
Pan Handle | Fixed length 390mm (15.4") |
Temperature Range | -40° to +65°C (-40° to +149°F) |
Leg Extension | 3-stage telescopic |
Lock Type | Concentric Rapid Lock |
Leg Material | Carbon fibre |
