Miller 3742
CX8 (1093) Solo 75 2-St Alloy Tripod (1630) Pan Handle (679) Strap (1520) Softcase (3514)
Miller 3742
CX8 (1093) Solo 75 2-St Alloy Tripod (1630) Pan Handle (679) Strap (1520) Softcase (3514)

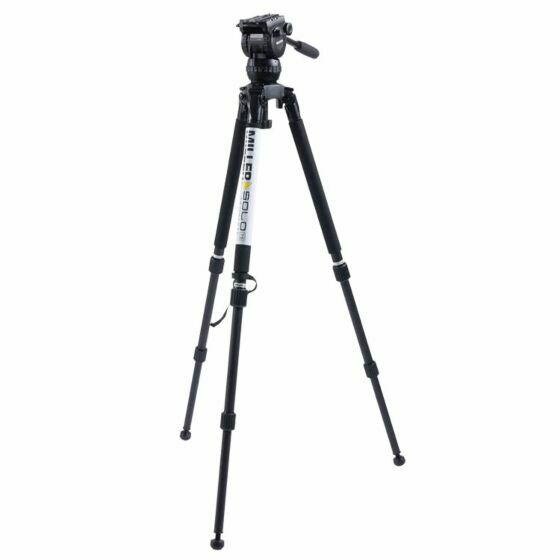

The 3742 CompassX 8 (CX8) Solo 75 2-stage (alloy) tripod system combines with the innovative 1630 Solo tripod and CX8 fluid head. An ideal tripod system for cinematic and documentary, where the payload and centre of gravity changes frequently due to lens or accessories swapping.
CX8 is the premium head in the 75mm ball levelling CompassX series. Designed for camera rigs from 0kg to 12kg, with CB plus 16 balance positions and 5 levels of fluid drag, it sets the standard in professional compact camera supports.
The Compass 20 is matched with the 2-stage Solo (alloy) tripod resulting in a height range of 414-1805mm (16.3-71.1"), and offering rapid action twist locks and the versatility of the 3 position leg angles.
Included in box
- 1x CX8 fluid head
- 1x Solo 75 2-stage tripod (alloy)
- 1x Pan handle - fixed with clamp
- 1x Solo shoulder strap (Aircell)
- 1x Softcase 2-stage
Specifications
| Payload Range | 0-12.0kg (0-26.4lbs) |
| Weight | 5.9kg (13.0lbs) |
| Height Range | 414-1805mm (16.3-71.1") |
| Transport Length | 870mm (34.3") |
| Counterbalance Positions | 16 selectable positions (15+0) |
| Pan Tilt Drag | 5 selectable fluid drag positions + 0 |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | + 90°/ -75° |
| Pan Range | 360° |
| Camera Platform | Quick release, side load camera plate |
| Sliding Range | 60mm (2.4") |
| Mounting Base | Ø75mm (2.9") ball levelling |
| Height Above Bowl | 167mm (6.6") |
| Illuminated Controls | Bubble level |
| Pan Handle | Fixed length 390mm (15.4") |
| Temperature Range | -40° to +65°C (-40° to +149°F) |
| Leg Extension | 2-stage telescopic |
| Lock Type | Concentric Rapid Lock |
| Leg Material | Alloy |
