Miller 3728
CX6 (1092) Solo-Q 75 2-St Carbon Fibre Tripod (2500) Pan Handle (679) Strap (1520) Softcase (3514)
Miller 3728
CX6 (1092) Solo-Q 75 2-St Carbon Fibre Tripod (2500) Pan Handle (679) Strap (1520) Softcase (3514)

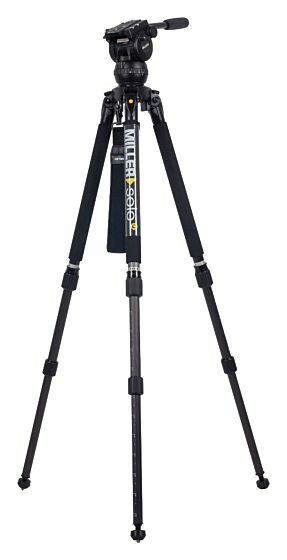

The 3728 Compassx 6 (CX6) Solo 75 2-stage (carbon fibre) light weight tripod system combines the innovative lightweight 1501 Solo tripod and CX6 fluid head. Designed to adapt to your shooting needs for camera rigs from 0kg to 12kg. Whether it’s ENG, soft news, documentary or filmmaking, the CX6 is a versatile, powerful head with outstanding performance. With advanced fluid drag, radial control rings and quick release side loading platform the CX6 is fast to set up, smooth and precise.
The CX6 employs CB PlusTM technology providing 16 positions of counterbalance and, with 3+0 levels of Miller’s unrivalled fluid drag, 60mm of camera plate travel, you can quickly tune to your tripod configuration for perfect camera control.
The CX6 is matched with the 2-stage Solo (carbon fibre) tripod resulting in a working height range of 404-1784mm (15.9-70.2"), and offer rapid action twist locks, versatility of the Solo leg angles with the added benefit of carbon fibre construction.
Included in box
- 1x 1092 CX6 fluid head
- 1x 1501 Solo 75 2-stage tripod (carbon fibre)
- 1x 679 Pan handle - fixed with clamp
- 1x 1520 Solo shoulder strap (Aircell)
- 1x 3514 Softcase 2-stage
Specification:
Payload Range | 0-12.0kg (0-26.4lbs) |
Weight | 5.3kg (11.7lbs) |
Height Range | 404-1795mm (15.9-70.7") |
Transport Length | 864mm (34") |
Counterbalance Positions | 16 selectable positions (15+0) |
Pan Tilt Drag | 3 selectable fluid drag positions + 0 |
Pan Tilt Locks | Positive lock calliper brake system |
Tilt Range | + 90°/ -75° |
Pan Range | 360° |
Camera Platform | Quick release, side load camera plate |
Sliding Range | 60mm (2.4") |
Mounting Base | Ø75mm (2.9") ball levelling |
Height Above Bowl | 167mm (6.6") |
Illuminated Controls | Bubble level |
Pan Handle | Fixed length 390mm (15.4") |
Temperature Range | -40° to +65°C (-40° to +149°F) |
Leg Extension | 2-stage telescopic |
Lock Type | Concentric Rapid Lock |
Leg Material | Carbon fibre |
Components | 1092 CX6 fluid head |
1501 Solo 75 2-stage tripod (carbon fibre) | |
679 Pan handle - fixed with clamp | |
1520 Solo shoulder strap (Aircell) | |
3514 Softcase 2-stage |
