Miller 3714
CX2 (1090) Solo-Q 75 3-St Carbon Fibre Tripod (2505) Pan Handle (679) Strap (1520) Softcase (3514)
Miller 3714
CX2 (1090) Solo-Q 75 3-St Carbon Fibre Tripod (2505) Pan Handle (679) Strap (1520) Softcase (3514)

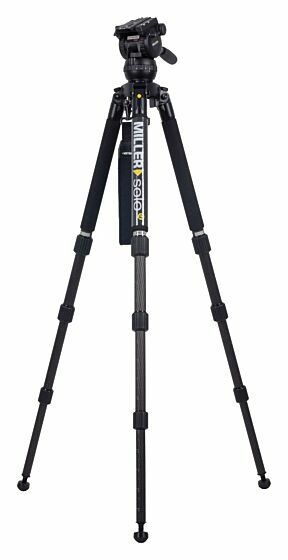

The 3714 CX2 Solo 75 3-stage (carbon fibre) system consists of theCX2 fluid head and the ultra-light, rigid Solo 75 3-stage Carbon Fibre Tripod. Designed for “on the go” creative professionals needing a versatile and affordable solution with uncompromised performance. Whether you shoot with a mirrorless camera, DSLR, mid-sized cine-rig or an ENG camera, CX2 is capable of balancing payloads from 0kg to 8kg. It features advanced precision fluid drag, intuitive controls, and fast set-up.
The CX2 employs CB PlusTM technology providing 16 positions of counterbalance and, with 3+0 settings of Miller’s unrivalled fluid drag coupled with 60mm of camera plate travel, you can easily select the perfect set-up to match your configuration for ultimate camera control.
The CX2 is matched with the 3-stage Solo (carbon fibre) tripod that results in a range topping height range of 390-2040mm (15.4-80.3"), rapid action twist locks on independent stages and the versatility to set up system across all terrains.
Included in box
1x CX2 fluid head
1x Solo 75 3-stage tripod (carbon fibre)
1x Pan handle - fixed with clamp
1x Solo shoulder strap (Aircell)
1x Softcase 2-stage
1x Solo 75 3-stage tripod (carbon fibre)
1x Pan handle - fixed with clamp
1x Solo shoulder strap (Aircell)
1x Softcase 2-stage
Specification
Payload Range | 0-8.0kg (0-17.6lbs) |
Weight | 5.8kg (12.8lbs) |
Height Range | 390-2040mm (15.4-80.3") |
Transport Length | 828mm (32.6") |
Counterbalance Positions | 16 selectable positions (15+0) |
Pan Tilt Drag | 3 selectable fluid drag positions + 0 |
Pan Tilt Locks | Positive lock calliper brake system |
Tilt Range | + 90°/ -75° |
Pan Range | 360° |
Camera Platform | Quick release, side load camera plate |
Sliding Range | 60mm (2.4") |
Mounting Base | Ø75mm (2.9") ball levelling |
Height Above Bowl | 167mm (6.6") |
Illuminated Controls | Bubble level |
Pan Handle | Fixed length 390mm (15.4") |
Temperature Range | -40° to +65°C (-40° to +149°F) |
Leg Extension | 3-stage telescopic |
Lock Type | Concentric Rapidlock |
Leg Material | Carbon fibre |
