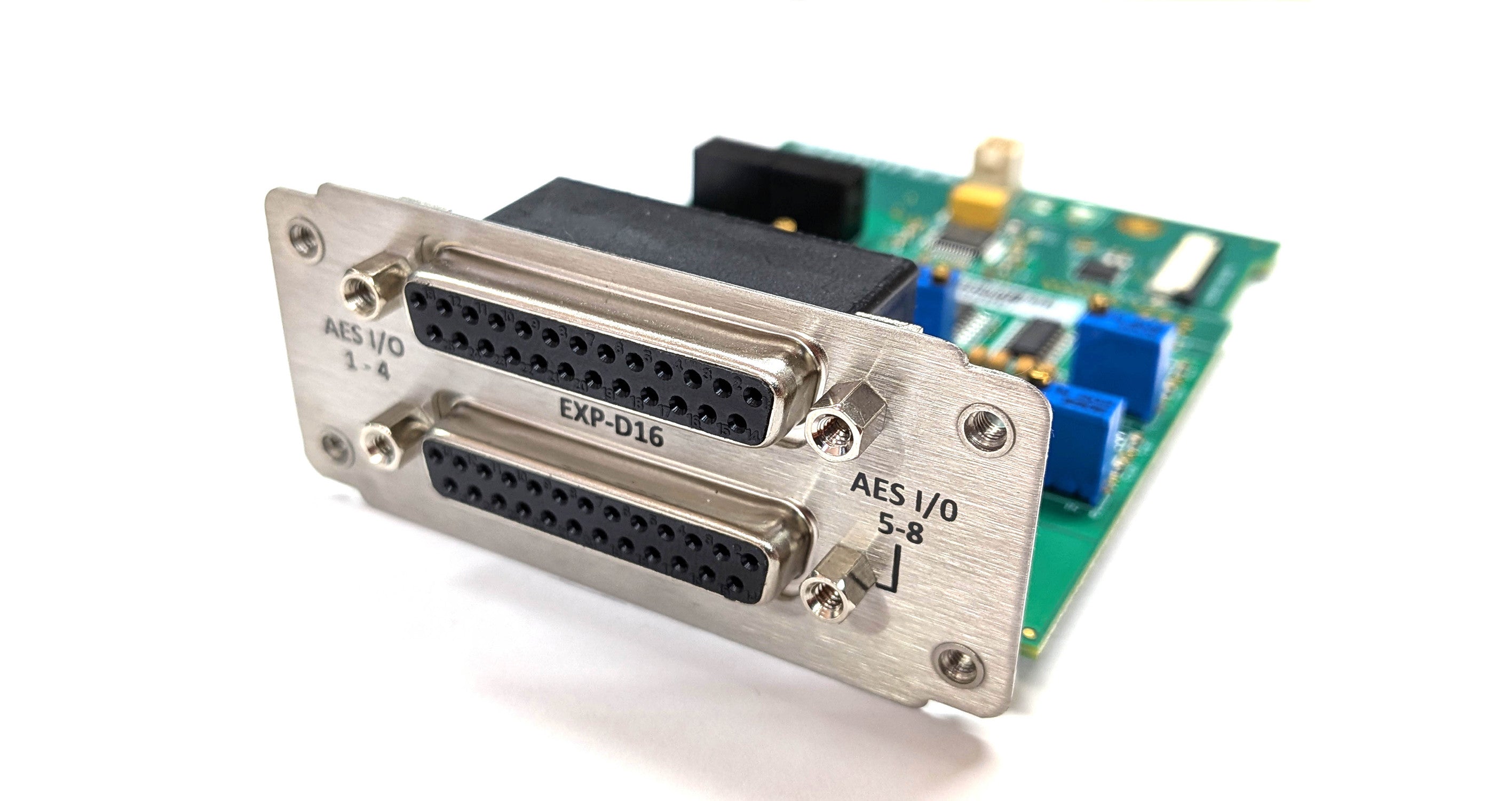

Sonifex EXP-D16
8 AES3 Stereo Digital Input/Output Expansion Card
This expansion module provides eight stereo AES/EBU digital audio inputs and eight stereo outputs (16 channels in and 16 channels out) via a 25-pin D-type connector, using the AES59 digital pinout for straightforward integration into professional broadcast and audio systems.
Once installed, all inputs and outputs are available within the unit’s internal routing grid, accessible via the integrated web server. This enables flexible routing and control of digital audio signals, allowing seamless incorporation into existing workflows.
The module can be supplied factory-fitted or retrofitted in the field, with a straightforward disassembly and reassembly process. It connects directly to the main board using the supplied 4-pin power cable and 30-pin FFC audio/control cable, ensuring a reliable installation. This card extends digital connectivity while maintaining clean signal handling and robust performance.
Product Features
-
8 stereo AES/EBU digital audio inputs and 8 stereo outputs (16 in / 16 out total channels).
-
25-pin D-type connector with AES59 digital pinout.
-
Full integration into the internal routing grid via web server.
-
Flexible routing of all input and output channels within the system.
-
Supplied with 4-pin power cable and 30-pin FFC audio/control cable.
-
Can be factory-fitted or retrofitted in the field.
-
Disassembly and reassembly process for installation.
