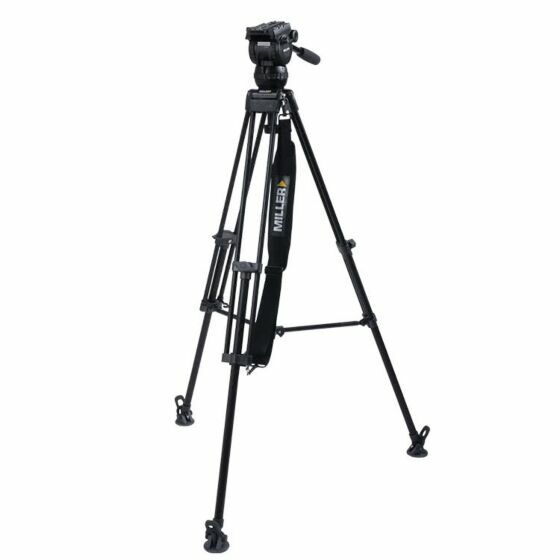

Miller 3702
CX2 (1090) Toggle LW Alloy Tripod (440) AG Spreader (835) Pan Handle (679) Strap (1520) Feet (550) Softcase (3512)
The 3702 CX2 Toggle LW 1-stage (alloy) tripod system is designed for “on the go” creative professionals needing a versatile and affordable solution with uncompromised performance. Whether you shoot with a mirrorless camera, DSLR, mid-sized cine-rig or an ENG camera, CX2 is capable of balancing payloads from 0kg to 8kg. It features advanced precision fluid drag, intuitive controls, and fast set-up.
The CX2 employs CB PlusTM technology providing 16 positions of counterbalance and, with 3+0 settings of Miller’s unrivalled fluid drag coupled with 60mm of camera plate travel, you can easily select the perfect set-up to match your configuration for ultimate camera control.
The CX is matched with the LW Toggle tripod (alloy) with above ground spreader, where the positive Toggle locks mean quick set-ups while the rubber feet mean the system can be used over any terrain.
Included in box
- 1x CX2 Fluid Head
- 1x Toggle 75 LW Tripod (alloy)
- 1x DS Tripod Spreader
- 1x Pan Handle - fixed with clamp
- 3x Rubber Feet
- 1x Shoulder Strap (padded)
- 1x Softcase 1-stage
Specifications
| Payload Range | 0-8.0kg (0-17.6lbs) |
| Weight | 5.8kg (12.8lbs) |
| Height Range | 790-1500mm (31.1-59") |
| Transport Length | 1000mm (39.4") |
| Counterbalance Positions | 16 selectable positions (15+0) |
| Pan Tilt Drag | 3 selectable fluid drag positions + 0 |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | + 90°/ -75° |
| Pan Range | 360° |
| Camera Platform | Quick release, side load camera plate |
| Sliding Range | 60mm (2.4") |
| Mounting Base | Ø75mm (2.9") ball levelling |
| Height Above Bowl | 167mm (6.6") |
| Illuminated Controls | Bubble level |
| Pan Handle | Fixed length 390mm (15.4") |
| Temperature Range | -40° to +65°C (-40° to +149°F) |
| Leg Extension | 1-stage |
| Lock Type | Toggle |
| Leg Material | Alloy |
