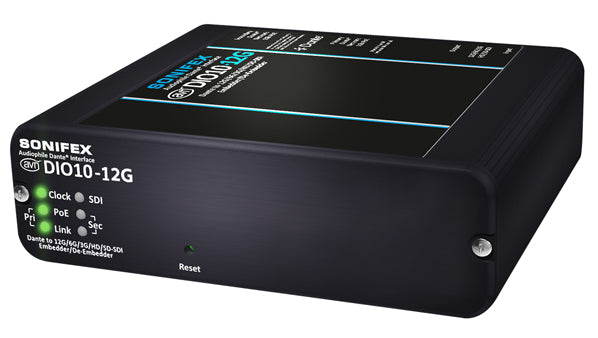

Sonifex AVN-DIO10-12G



An upgrade to the extremely popular AVN-DIO10, the new AVN-DIO10-12G now adds support for the full range of SDI standards from SD-SDI through to 12G-SDI. The AVN-DIO10-12G can be used for simultaneous embedding and de-embedding of up to 64 channels.  This simple plug and play audio/video interface provides a convenient and elegant method of connecting legacy 12G/6G/3G/HD/SD-SDI equipment to the Dante® AoIP audio network.

The AVN-DIO10-12G can be used for simultaneous embedding and de-embedding for up to 64 channels. This simple plug and play audio/video interface provides a convenient and elegant method of connecting legacy 12G/6G/3G/HD/SD-SDI equipment to the Dante® AoIP audio network.

The AVN-DIO10-12G takes an SDI feed, de-embeds up to 64 audio channels and places them on channels 1-64 on the Dante network, mapped using Dante Controller. It simultaneously takes the 64 input channels mapped to the device on Dante Controller and re-embeds them onto the SDI output.

The unit also contains an integrated SDI generator to allow embedding onto the SDI output without the need of an SDI input. This is fully configurable through the web UI.

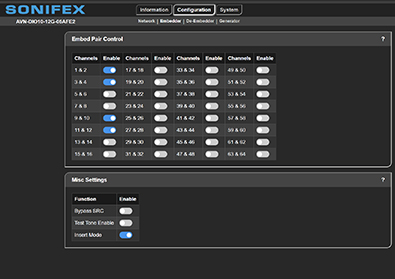

Other controls provided through the web UI allow embedding of Dante channels onto the SDI output per channel pair and there are two modes of operation: Insert Mode enabled allows embedding to overwrite existing SDI audio selectively per channel pair. Insert Mode disabled clears any incoming audio channels on the SDI output and then allows selective embedding onto the SDI output per channel pair.

Test Tone mode allows 1kHz, 2kHz, 3kHz and 4kHz signals to be output on channels 1 to 4 respectively, for any group where embedding is enabled. This is so that downstream SDI audio outputs can be tested without the need of Dante sources.

It’s powered by Power over Ethernet (PoE), using Neutrik® EtherCON connectors, with primary and secondary ports for power and data redundancy. The AVN-DIO10-12G uses the latest Audinate Dante® chipsets so is AES67 and Dante Domain Manager® compliant. There are front panel LEDs to indicate network clock status, SDI lock status, AoIP Primary and AoIP Secondary link status, PoE Primary power and PoE Secondary power active.

A web interface is available for firmware updates, control, status information and network settings.

Up to 3 of the AVN-DIO10-12G units can be rackmounted in the 1U AVN-DIORK.

  • 1 x 12G/6G/3G/HD/SD-SDI input.
  • 1 x reclocked 12G/6G/3G/HD/SD-SDI output.
  • Dual redundant Primary and Secondary Dante network ports using Neutrik EtherCon® Ethernet connectors.
  • Powered via PoE (Power over Ethernet) with PoE dual redundancy.
  • Fully Dante compliant device.
  • AES67 compatible.
  • Dante Domain Manager compliant.
  • Web interface for configuration.
  • Clock, SDI Lock, PoE and Sync LEDs.
  • Overwrite or insert into existing SDI audio groups.
  • Test tones available on embedded outputs.
  • SDI audio sample rate support at 48kHz.
  • All available Dante sample rates supported.
  • Sample rate conversion of audio between Dante and SDI.
  • Dante clock domain can be optionally synchronised from the SDI clock.
  • 3 x units rackmount in the AVN-DIORK.

Technical Specification For AVN-DIO10-12G

Parameter SDI Input

Input Impedance: 75Ω Unbalanced
SDI Supported Standards:

270Mbps SMPTE-259M-C (SD)
1.485 or 1.4835Gbps SMPTE-292M (HD)
2.97 or 2.967Gbps SMPTE-424M (3G)
5.94 or 5.934Gbps SMPTE-2081 (6G)
11.88 or 11.868Gbps SMPTE-2082 (12G)

Supported Video Formats: 525/59.94 (SMPTE-125M)
625/50 (ITU-R BT.656)
720p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE-296M)
1035i/59.94, 60 (SMPTE-260M)
1080i/50, 59.94, 60 (SMPTE-274M)
1080p/23.98, 24, 25, 50, 59.94, 60 (SMPTE-274M)
1080pSF/23.98, 24, 25, 29.97, 30 (RP-211) 1080i/50 (SMPTE-295M)
1080p/50 (SMPTE-295M)
2160p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE-2036)
Embedded Audio: 48kHz, synchronous
SMPTE-272M-ABC
SMPTE-299M
SMPTE-299-2 (De-embedding only)
Supported Image Mapping: SMPTE-425M-AB


Parameter SDI Output

Output Impedance: 75Ω Unbalanced
Alignment Jitter: <0.2UI
Output Level: 800mV ±10%
Return Loss: TBC
SDI Supported Standards: Loop-through - Output follows input
Generator – See above standards
Supported Video Formats: Loop-through - Output follows input
Generator – See above formats
Embedded Audio: 48kHz, synchronous
SMPTE-272M-C
SMPTE-299M


Network and AoIP

AoIP Standard: Dante
Channels: 44.1/48kHz - 64 receive, 64 transmit
88.2/96kHz – 32 receive, 32 transmit
176.4/192kHz – 16 receive, 16 transmit
Flows: 32 receive, 32 transmit
Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Encoding: PCM 16, PCM 24, PCM 32
AES67 Support Yes
Connectivity: 2 x etherCON (RJ45 compatible)
Speed: 1Gbps or 100Mbps
Network Modes: Switched or redundant
Dante Domain Manager Ready: Yes
Clock Source: Internal (PTP Leader), Network PTP Leader or from SDI input (Sync to External)


PoE Power

Standard 802.3af
Redundancy Yes
Class 0
PD Power Range 0.44 W to 12.94 W
Typical PSE Power Usage 6 W
Max PSE Usage 15.4 W


Equipment Type

AVN-DIO10-12G: Dante to 12G/6G/3G/HD/SD-SDI Embedder/De-Embedder

Physical Specification

Dimensions (Raw): 14.0cm (W) x 13.6cm (D) x 4.2cm (H)
5.5” (W) x 5.4” (D) x 1.7” (H)
Dimensions (Boxed): 17.8cm (W) x 17cm (D) x 5.6cm (H)
7.0" (W) x 6.7" (D) x 2.2" (H)
Weight: Nett: 0.36kg  Gross: 0.55kg
Nett: 0.79lbs Gross: 1.21lbs

Accessories

AVN-DIOBT
AVN-DIOMT
AVN-DIORK
AVN-DIO Large Unit Belt Clip Kit
AVN-DIO Large Unit Underdesk Mount
AVN-DIO 1U 19" Rack Kit (5 x Small DIO or 3 x Large DIO)
