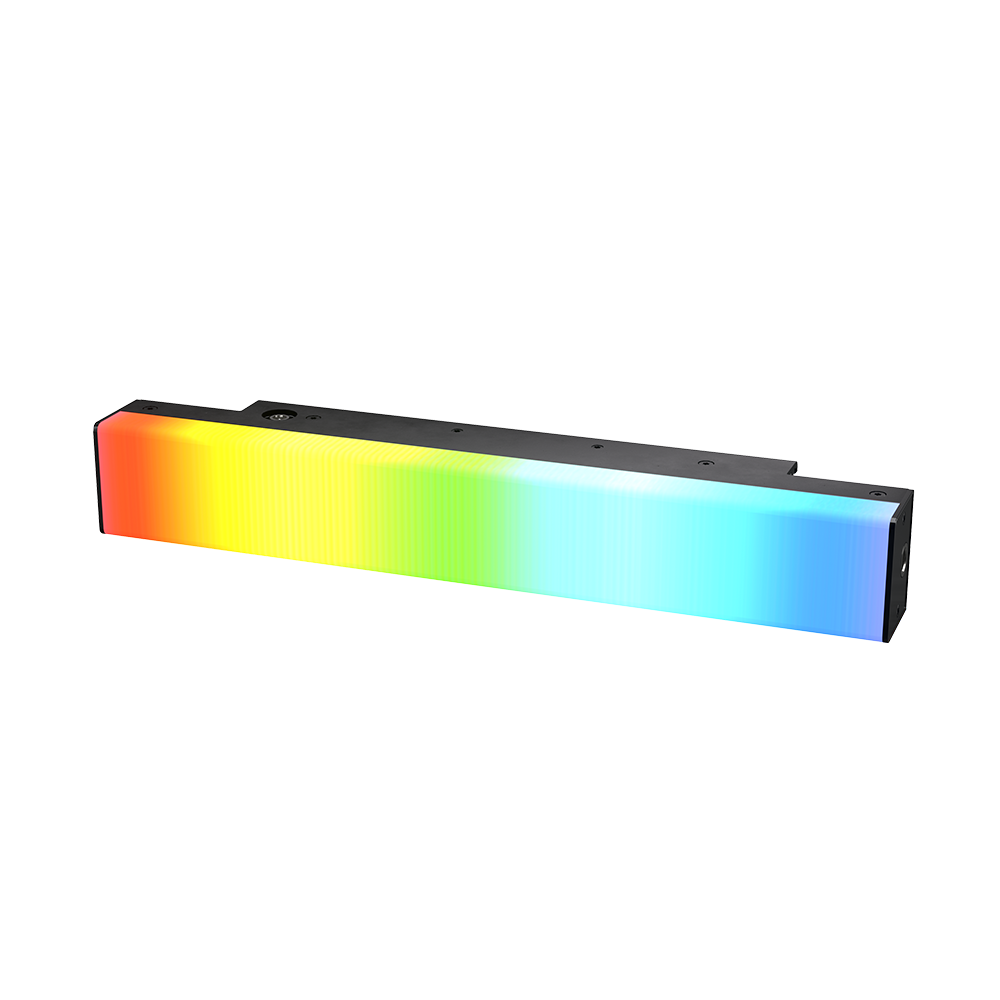

The INFINIBAR Pixel Bar is Aputure’s first RGBWW full-colour LED pixel bar. Featuring 24 pixels, intuitive mounting and connecting options with aninfinite blending design, an integrated battery, and advanced connectivity methods, the INFINIBAR PB3 is a 1-foot (30cm) pixel bar that excels inbuilding and creating unique, colourful designs that bring scenes to life innew and exciting ways.
The INFINIBAR’s most unique feature is the ability to link multiple 1ft, 2ft, or 4ft INFINIBARs together using 10 differently-shaped connectors* to design creative shapes and effects. Users can operate multiple INFINIBARs using one power supply when linked by the power-sharing connectors or use theirinternal batteries for greater versatility. The pixel bar’s infinite blendingdesign also eliminates visible gaps between fixtures to create seamlesspixelated effects using the PB3’s 24 RGB pixels.
Featuring advanced wireless connectivity, the INFINIBAR PB3’s 24 pixels canbe grouped and controlled via Sidus Link, LumenRadio CRMX, or through wired DMX using Aputure’s USB-C to DMX Adapter**. It also incorporates critical colour controls (including advanced HSI with white-point adjustability, RGB, and xy) for full creative freedom. Toggle between 9 built-in System FXand 7 built-in Pixel FX or save up to 20 Custom FX in the Sidus Link app for easy access to different light modes.
The INFINIBAR PB3’s proprietary RGBWW chipset produces stunning colour quality throughout its wide CCT range of 2,000K to 10,000K with full green magenta adjustment, and can reproduce >90% of colours within the Rec.2020 Colour Space. Matching Aputure’s high standards for colour, theINFINIBAR PB3 also produces accurate skin tones, measuring scores of CRI:96+, TLCI: 98+, SSI (D56): 74, and SSI (Tungsten): 85.
With its lightweight yet durable aluminium housing, the INFINIBAR PB3 provides ultimate flexibility across all shooting environments. Whether linkedtogether or used independently, the INFINIBAR’s built-in magnets, INFINIBAR Rail and Baby Pin Clamp system, and two ¼-20in threads allow the PB3 to be mounted with ease. And with its built-in 14.8Wh Lithium battery, the INFINIBAR PB3 can operate at its 6.5W max output for 120 minutes, making it a versatile and compact fixture for your lighting toolkit.
* Each INFINIBAR Includes 1 Straight Connector. Remaining 9 Connectors Sold Separately ** Aputure Active USB-C to 5-Pin DMX In & Out Adapter Sold Separately

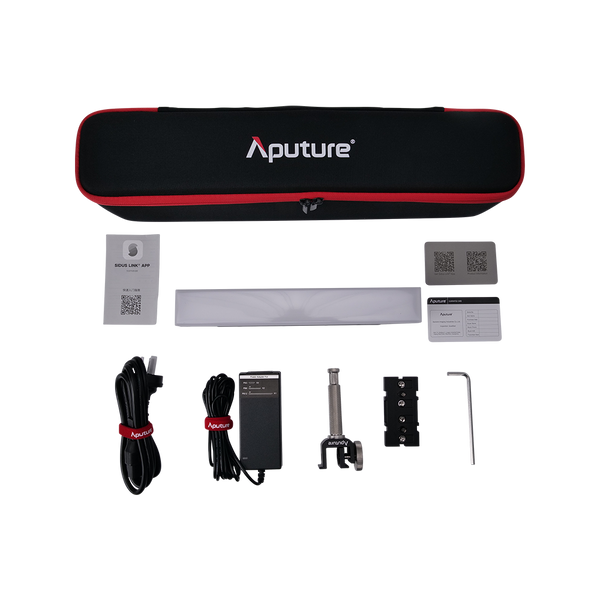

Included in box
1 x INFINIBAR PB3
1 x 48W DC Power Adapter (3m)
1 x AC Locking Power Cable (1.5m)
1 x INFINIBAR Clamp to Baby Pin Adapter
1 x INFINIBAR Straight Connector
1 x 5mm Hex Wrench
1 x Carrying Case
Specifications
CCT
2,000K - 10,000K
CRI
96+
TLCI
98+
CQS
96
SSI (D56)
74
SSI (Tungsten)
85
TM-30 RF (Average)
94
TM-30 RG (Average)
103
Colour Chipset
RBGWW
Beam Angle (Half-Peak)
120 Degree
Lumens
485lm
Max Power Output
6.5W
Max Power Consumption - Fixture
9W
Max Power Consumption - Power Supply
10W
Operating Voltage & Current - Fixture
24V, 0.5A
Max Power Consumption - Fixture - Power Supply
100V-240V 50/60Hz, 1.5A
Battery Capacity
7.4V, 2000mAh, 14.8Wh
Battery Life
Approx. 120 Mins @ Max Output
Charge Time
Approx. 120 Mins (24V/1A)
Pixel Mapping
24 Pixels
Operating Temperature
-10 C ~ 45 C / 14 F ~ 113 F
Control Methods
Sidus Link App, DMX/RDM*, LumenRadio CRMX
Wireless Operating Range - Bluetooth
80m / 262.5ft
Wireless Operating Range - LumenRadio
100m / 328.1ft
IP Rating
IP 20
Screen Type
OLED
Firmware Upgradeable
Sidus Link, USB-C
Cooling Method
Passive Cooling
Mounting
INFINIBAR Rail
Dimensions:
Fixture
30.4 x 4.5 x 4.3cm / 12.0 x 1.8 x 21.7in
Fixture + Spacer
30.4 x 4.5 x 5.2cm / 12.0 x 1.8 x 2.1in
AC Power Supply
12.0 x 5.3 x 3.2cm / 4.7 x 2.1 x 1.3in
Clamp
12.2 x 5.5 x 4.0cm / 4.8 x 2.2 x 1.6in
Case
54 x 13 x 12.5cm / 21.3 x 5.1 x 4.9in
Weight:
Fixture
0.60kg / 1.32lbs
Fixture + Spacer
0.73kg / 1.61lbs
AC Power Supply
0.49kg / 1.08lbs
INIFNIBAR Clamp
0.27kg / 0.60lbs
Total
1.49kg / 3.28bs
Est. LED Lifetime (L70)
50,000 Hours
Est. Colour Shift Over Lifetime
2% Over 6,000 Hours
Certifications
CE, FCC, KC, NCC, ROHS, RCM, ICES, UKCA,, PSE
Photometrics:
CCT
2,000K
0.5m: 448 lux / 42 fc
1.0m: 85 lux / 8 fc
2,700K
0.5m: 486 lux / 45 fc
1.0m: 127 lux / 12 fc
3,200K
0.5m: 512 lux. / 48 fc
1.0m: 130 lux / 12 fc
4,300K
0.5m: 540 lux / 50 fc
1.0m: 137 lux / 13 fc
5,600K
0.5m: 545 lux / 51 fc
1.0m: 144 lux / 13 fc
6,500K
0.5m: 544 lux / 51 fc
1.0m: 145 lux / 13 fc
7,500K
0.5m: 544 lux / 51 fc
1.0m: 145 lux / 13 fc
10,000K
0.5m: 497 lux / 46 fc
1.0m: 135 lux / 13 fc
Red
0.5m: 111 lux / 10 fc
1.0m: 40 lux / 4 fc
Green
0.5m: 353 lux / 33 fc
1.0m: 98 lux / 9 fc
Blue
0.5m: 56 lux / 5 fc
1.0m: 20 lux / 2 fc
Notes
* Aputure Active USB-C to 5-Pin DMX In & Out Adapter Sold Separately
Price inc. VAT:
£318.98
